Wagner Tuning Hybrid-Carbon Intake Manifold W/ Integrated Intercooler, S58 - G8x M2, M3, M4
Since 2002, Wagner Tuning have been developing and producing high quality engine parts, such as intake manifolds, exhaust manifolds, downpipes and intercooler kits. Recent technology advancements coupled with years of experience ensure optimum performance and highest manufacturing precision for customers.
$11,309.00
Product Information
The 3.0L S58 turbo engine of the BMW G8x M2/M3/M4 is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a watercooled intercooler, which is integrated directly into the intake manifold.
The new WAGNER TUNING hybrid-carbon-intake manifold with integrated intercooler has got a special competition core which was specially developed for the high requirements of the S58 engine and offers 50% more external core volume compared to the original intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal air flow. With the help of CFD simulations, the CNC-milled endtanks were designed for optimal air flow conditions. The result is an excellent cooling property with a minimal back pressure. That's why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
All WAGNER TUNING radiators are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).
Installation Instruction Intercooler Kit BMW S58 G8x
Installation Instruction Intercooler Kit BMW S58 G8x
Fits the following models with S58 engine
- BMW G87 M2 338kW/460 hp
- BMW G80/G81 M3 353-375kW/480-510hp
- BMW G82 M4 353-405kW/480-550hp
Advantages of this product

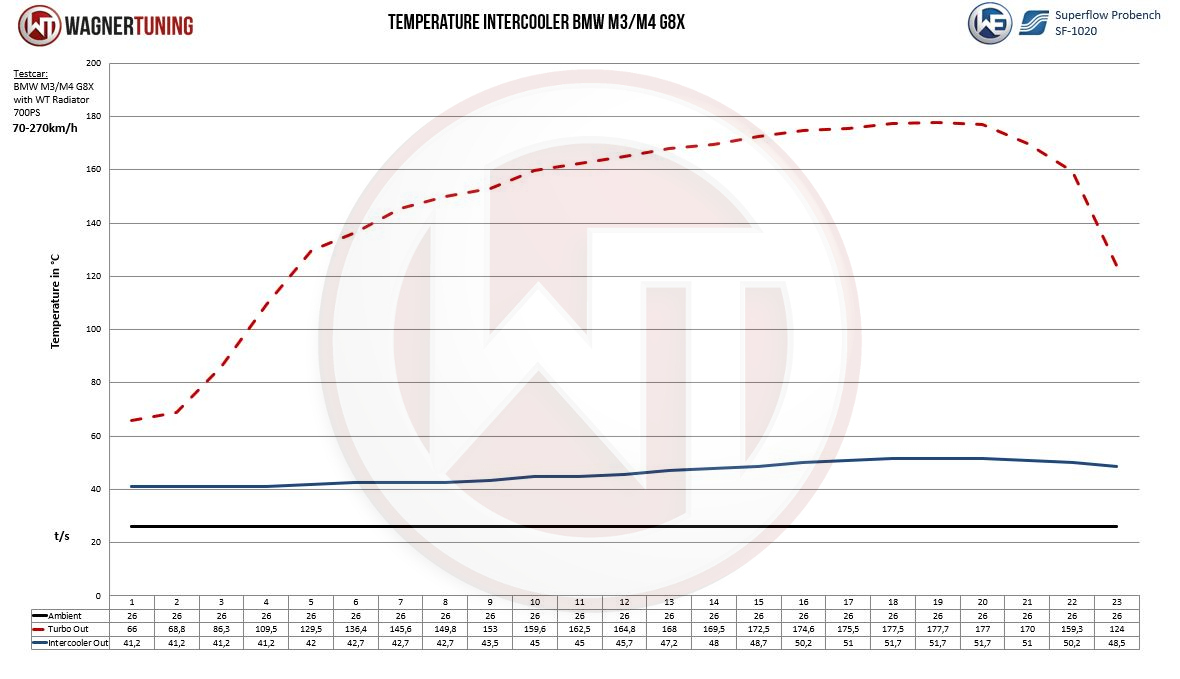

- Significantly better cooling performance (up to 20°C cooler IAT).
- Maximum mechanical discharge of the turbocharger.
- More power and torque for your engine.
- 100% pressure resistance.
- 100% Plug and Play (no modifications).
- Preprocessed port fuel injection (fuel rail optionally available).
- 1/8 NPT ports for measuring additional parameters.
- This intake manifold is suitable for all performance levels.
Models
- 2 Series / G87 M2 (2022+) / M2
- 3 Series / G80 / G81 M3 (2021+) / M3
- 3 Series / G80 / G81 M3 (2021+) / M3 Competition
- 4 Series / G82 / G83 M4 (2021+) / M4
- 4 Series / G82 / G83 M4 (2021+) / M4 Competition
- 4 Series / G82 / G83 M4 (2021+) / M4 CSL
